When you open a 3D model, it will be visible to users in the virtual space. Users can interact with the 3D model unless you lock it.

Here's how to open and interact with a 3D model:

Open the VIVERSE Menu and select Files.
On the left side of the File Browser window, select 3D models, then choose a 3D model file and select Open.
Move your controller or hand to position the 3D model, then press the trigger or pinch to place it.

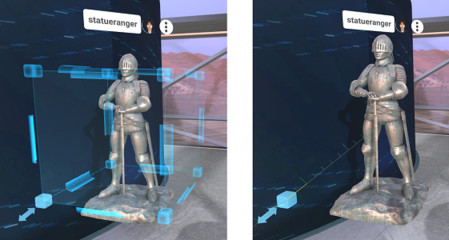

When you aim the beam at the 3D model, a gizmo will appear. You'll see controls on the gizmo for moving, rotating, and scaling the 3D model.

Aim the beam at the gizmo, then press and hold the trigger or pinch to grab the gizmo.
Drag the 3D model to the position where you want to place it.

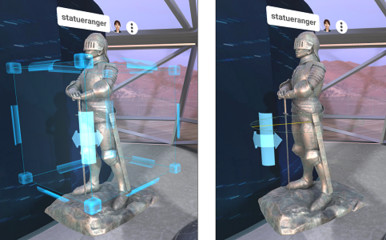

Aim the beam at one of the edges of the gizmo. An arrow will appear.
Press and hold the trigger or pinch to grab the edge, then drag to rotate the 3D model.

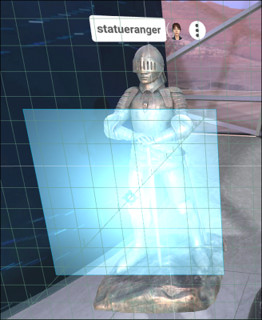

Aim the beam at one of the corners of the gizmo. An arrow will appear.
Press and hold the trigger or pinch to grab the corner, then drag to resize the 3D model.

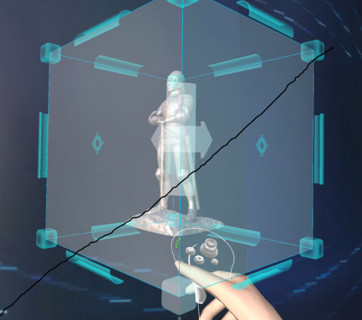

Tip: You can also directly touch the gizmo with your controller when moving, rotating, and scaling the 3D object.

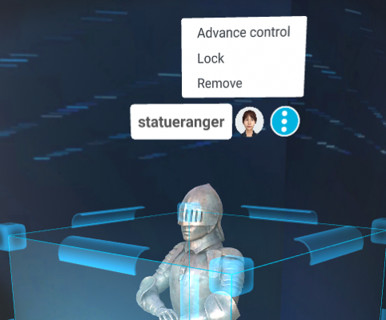

Select the More options button above the 3D model to open a menu with more options.

From the menu, you can choose the following:

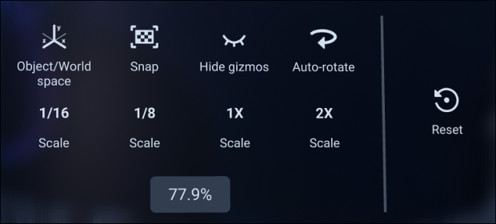

Advanced controls: Use the following additional controls for adjusting the 3D model:

Button	Description
	Object/World space: Change the gizmo's orientation relative to the 3D model or your space.
	Snap: Snap to grid when moving, rotating, or scaling the 3D model.
	Gizmos: Hide or show the gizmo.
	Auto-rotate: Turn auto rotation on and off.
	1/16: Scale the 3D model to 1/16 of the original size.
	1/8: Scale the 3D model to 1/8 of the original size.
	1X: Change the 3D model back to the original size.
	2X: Scale the 3D model to twice the original size.
	Reset: Reset the 3D model to its original size and orientation.
