If your VIVERSE for Business plan includes spaces that you can decorate, you can use images and 3D Models for decoration.
Images
Here's how to decorate a wall with an image:
- Open the VIVERSE Menu and then select Files.
- On the left side of the window, select Images (or Screenshots).
- Select an image and then select Open. The image will open in a content window in Private mode.
- Select in the lower right to change the content window to Public mode.
- Select Decorate . This will remove the content window frame from the image.
Note: Building owners and space owners can use images from any content window to decorate the space. If you're not a building owner or space owner, you can only use images from content windows that you opened. - Aim the beam at the image. A gizmo with controls will appear. You can do any of the following to adjust the image:
Action Steps Move the image Pinch your thumb and index finger together or press and hold the trigger to grab the gizmo, and then drag the image.
Rotate or tilt the image Pinch your thumb and index finger together or press and hold the trigger to grab one of the edges of the gizmo, and then drag to rotate or tilt the image.
Resize the image Pinch your thumb and index finger together or press and hold the trigger to grab one of the corners of the gizmo, and then drag to resize the image.
-

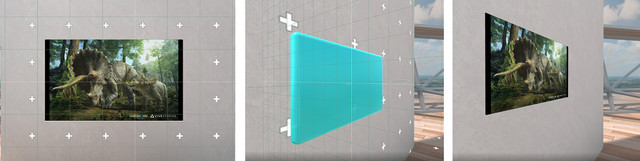

Grab the image and drag it close to a wall.
A grid will appear while you're moving the image to help make it easier to position it where you want. When a rectangular box appears, release the image to attach it to the wall.
Tip: You can also do any of the following with your image:
- Lock: Select in the upper right to lock the image. Locking the image will prevent others from making adjustments to the image.
- Remove: Select in the upper right to remove the image from the current space.
- Restore its window: Select in the upper right to restore the content window frame around the image.
3D Models
Note:
- Before you can open and view 3D models in your virtual space, you need to upload them to your VIVERSE for Business cloud storage space using the VIVERSE for Business User Console.
See Uploading 3D models to VIVERSE for Business – VIVERSE for Business Help Center. - For more information on working with 3D models in VIVERSE for Business, please see the available articles within: Working with 3D models – VIVERSE for Business Help Center
While there is a specific Decorate function for images, this option does not currently exist for 3D Models. However, 3D Models can still be placed in your environment and can be used in a decorative manner.
Here's how to open and interact with a 3D model:
- Open the VIVERSE Menu and select Files.
- On the left side of the File Browser window, select 3D models, then choose a 3D model file and select Open.
- Move your controller or hand to position the 3D model, then press the trigger or pinch to place it.
When you aim the beam at the 3D model, a gizmo will appear. You'll see controls on the gizmo for moving, rotating, and scaling the 3D model.

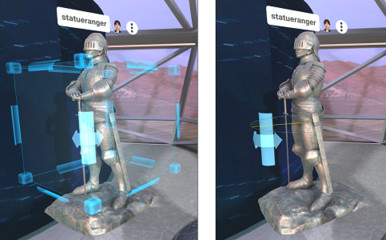

Moving the 3D model
- Aim the beam at the gizmo, then press and hold the trigger or pinch to grab the gizmo.
- Drag the 3D model to the position where you want to place it.

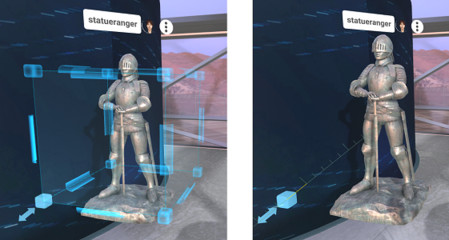

Rotating
- Aim the beam at one of the edges of the gizmo. An arrow will appear.
- Press and hold the trigger or pinch to grab the edge, then drag to rotate the 3D model.

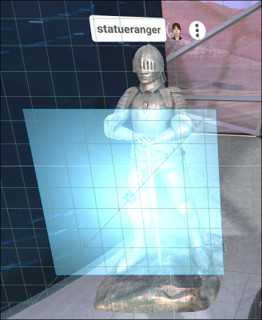

Resizing
- Aim the beam at one of the corners of the gizmo. An arrow will appear.
- Press and hold the trigger or pinch to grab the corner, then drag to resize the 3D model.

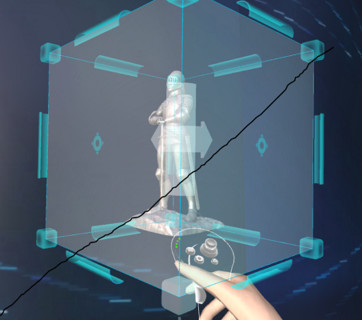

Tip: You can also directly touch the gizmo with your controller when moving, rotating, and scaling the 3D object.
More options

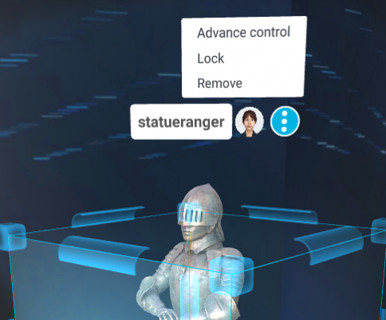

Select the More options button above the 3D model to open a menu with more options.
From the menu, you can choose the following:
-

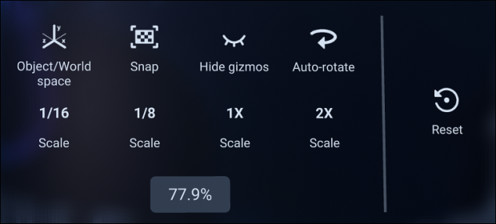

Advanced controls: Use the following additional controls for adjusting the 3D model:
Button | Description |
Object/World space: Change the gizmo's orientation relative to the 3D model or your space. | |
Snap: Snap to grid when moving, rotating, or scaling the 3D model. | |
Gizmos: Hide or show the gizmo. | |
Auto-rotate: Turn auto rotation on and off. | |
1/16: Scale the 3D model to 1/16 of the original size. | |
1/8: Scale the 3D model to 1/8 of the original size. | |
1X: Change the 3D model back to the original size. | |
2X: Scale the 3D model to twice the original size. | |
Reset: Reset the 3D model to its original size and orientation. |
- Lock: Lock the 3D model in place to prevent accidental movement or manipulation.
- Remove: Remove the 3D model from the current space.
Note: Other users can interact with the 3D model unless you lock it.
VIVERSE for Business Custom Scene (VCS) Tool / Scene SDK
The VCS Tool, or Scene SDK, can be used to create your own custom scenes for your building and rooms.
For information and access to these tools, please contact your account manager or reach out to us here: Contact us – VIVERSE for Business Help Center
